Sintered Fiber Felt Filter Cartridge

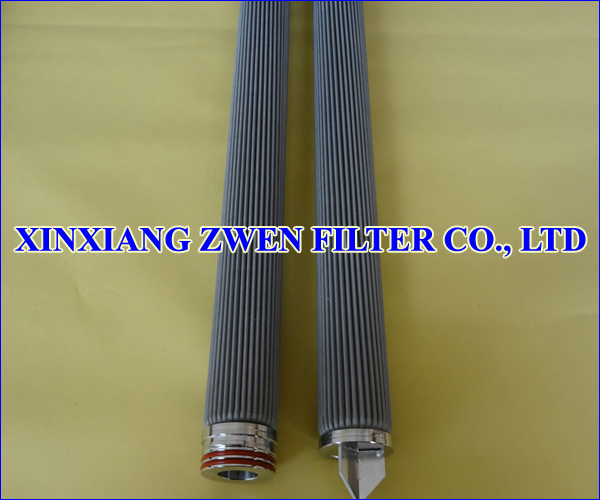

Pleated Sintered Fiber Felt Filter Cartridge

Pleated Sintered Fiber Felt Filter Cartridge

Pleated Sintered Fiber Felt Filter Cartridge Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 1 Micron ~ 300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 150 mm, 300 mm, 400 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization


Pleated Sintered Fiber Felt Filter Cartridge Feature

1. Pleated sintered fiber felt filter cartridge has large filter area

2. Pleated sintered fiber felt filter cartridge is depth filtration

3. Pleated sintered fiber felt filter cartridge has high dirt holding capacity because of three dimensional fiber structures of zwen sintered fiber felt

4. Pleated sintered fiber felt filter cartridge has a very high filter efficiency because of differential fiber layers density gradients of zwen sintered fiber felt

5. Stainless steel fiber will not shed in the filtration process

6. High porosity

7. High filter rating accuracy

8. High temperature resistance

9. High corrosion resistance

10. Pressure rise rate is slow in the filtration process

11. Pressure loss is low in the filtration process

12. High flow rate at low differential pressure

13. Washable and Cleanable

14. Reusable

15. Long service life



Application

Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry


About Us

XINXIANG ZWEN FILTER CO.,LTD  produces sintered filter cartridge (multilayer sintered filter cartridge, ss sintered filter cartridge, stainless steel sintered filter cartridge, ti sintered filter cartridge, titanium sintered filter cartridge), sintered metal filter cartridge (multilayer sintered metal filter cartridge, ss sintered metal filter cartridge, stainless steel sintered metal filter cartridge), sintered porous filter cartridge (ss sintered porous filter cartridge, stainless steel sintered porous filter cartridge, ti sintered porous filter cartridge, titanium sintered porous filter cartridge), sintered powder filter cartridge (ss sintered powder filter cartridge, stainless steel sintered powder filter cartridge, ti sintered powder filter cartridge, titanium sintered powder filter cartridge), sintered wire cloth filter cartridge, and sintered wire mesh filter cartridge.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: Parker, GKN, SIEMENS, MAHLE.
