Sintered Fiber Felt Filter Cartridge

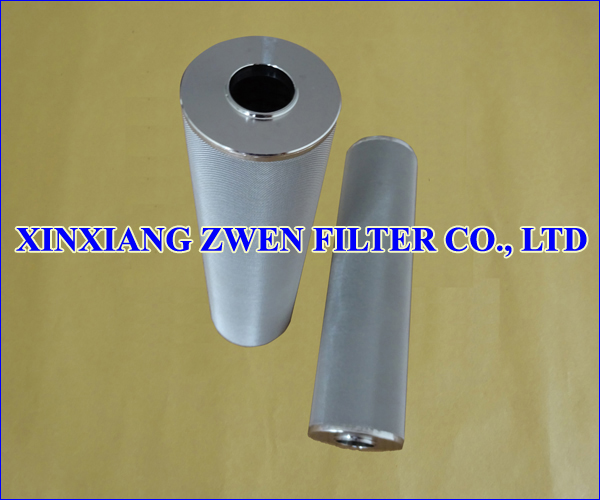

Cylindrical Sintered Fiber Felt Filter Cartridge

Cylindrical Sintered Fiber Felt Filter Cartridge

Cylindrical Sintered Fiber Felt Filter Cartridge Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 1 Micron ~ 300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm, 100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others

Length: 90 mm, 127 mm, 254 mm, 508 mm, 762 mm, 1016 mm or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization


Cylindrical Sintered Fiber Felt Filter Cartridge Feature

1. Cylindrical sintered fiber felt filter cartridge is surface filtration and depth filtration

2. Cylindrical sintered fiber felt filter cartridge has high dirt holding capacity because of three dimensional fiber structures of zwen sintered fiber felt

3. Cylindrical sintered fiber felt filter cartridge has a very high filter efficiency because of differential fiber layers density gradients of zwen sintered fiber felt

4. Stainless steel fiber will not shed in the filtration process

5. High porosity

6. High filter rating accuracy

7. High temperature resistance

8. High corrosion resistance

9. Pressure rise rate is slow in filtration process

10. Pressure loss is low in filtration process

11. High flow rate at low differential pressure

12. Washable and Cleanable

13. Reusable

14. Long service life


Application

Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry
